60 second tutorial on early 1900's German Swinger (Mystery) clocks by Junghans
|
| Here is my 60 second tutorial on how to tell the difference between an original German Swinger (Mystery) clock from cheaply made, mass produced Chinese fakes. Yes, some people call them "mystery-style", " Junghans-style", "reproduction", "Faithful reproduction", "antique styled",
"novelty swingers" but the simple truth is that they are made do deceive, not to imitate, so I call them the fake swingers.
Known models: Diana, Onion boy, Cherub, Cherub with arrow, Boy with a bat, Athlete (Commemorating 1936. Berlin Olympic games ?), Barmaid, Elephant, Kangaroo, Statue of Liberty, "Elegance", "Stella", etc... |
Breakng news [ October 19, 2002]
Unfortunately, position of the time setting button is no longer reliable point of identification!
It has been brought this to my attention that first fake Chinese movements with a setting button positioned in the centre started to appear on eBay - see enclosed pictures below. [Thanks goes to Mr.Don DeMarcus]
Don't get caught by Chinese fakes!
"Dear Nick,
Well - I finally stripped down the "Onion Boy" and it is a fake. The jewelled settings I thought I saw on the back plate turned out to be double oil-sinks made of brass but the rocker bar is jewelled. The dial is held on by "Sticky Pads" fitted over the three Phillips screws which hold the movement into the case (clear indication of a forgery), the mainspring is not held in a barrel and the rear movement plate is held on by small nuts. The rear and front plates have been patinated to look much older than they are but everything between them - safely hidden from casual examination - is brand new... W.G., USA"
|
|
|
|
base
|
statue
|
clock, swinging arm
|
time setting button
|
winder
|
"J" symbol on dial
|
movement
run-down time
|
main spring
|
value
|
|
Original
|
1. ebonized wood (oak)
2. marble
|
spelter, patinated to look like bronze
|
brass
|
positioned in centre |
both round and oval shape |
dial: with or without "J" , movement: unmarked. Later clocks stamped "J"
and "Made in Germany". |
8-day duration |
Main spring fitted in barrel |
. |
|
Fake
|
ebonized wood |
1. brass
2. brass, patinated to look like bronze
|
brass
|
positioned off-centre |
oval shape |
wiht or without "J"
on dial |
3-day and 5-day duration |
hooked on to pilar, no barrel |
US$50- US$100 |
 Elephant, ca.1910. |  Elegance, ca.1920. |

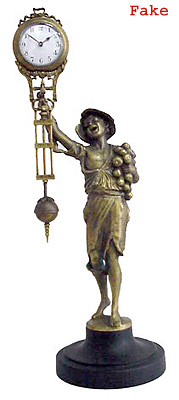

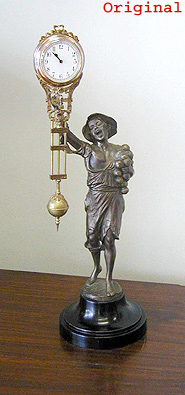

"Onion boy" - original and fake.

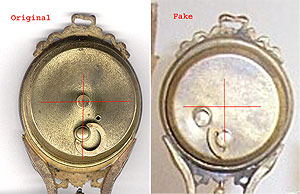

Position of the time setting button and winder.

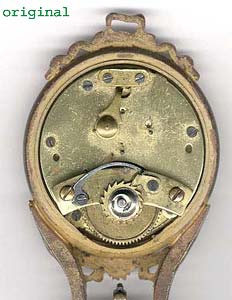

Movement, original. (Back cover removed)
This movement is of 8-day duration; fake movements are made of both 3 and 5 day duration.
Fake movement and swinging arm recently appearing on eBay:
Original Junghans enamel dial, variations:

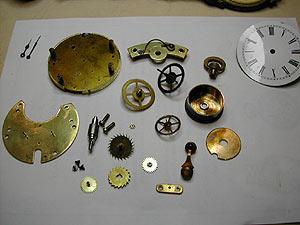

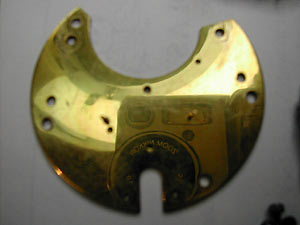

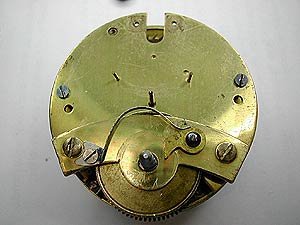

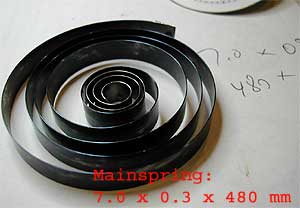

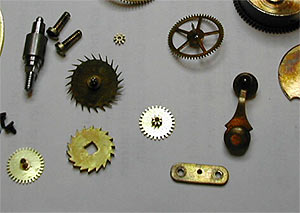

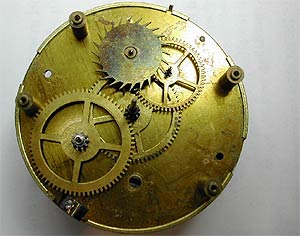

Original Junghans movement parts
Swinging arm [Compound Pendulum] : Practical dimensions chart, timing: +5 sec/day. Total weight 255 gr.
 | Once you have the swinging arm completely overhauled and set in beat, set the regulating nut at the centre of its travel on treaded bar. Set the spacings as per enclosed picture. Time it out (remember: it is a compound pendulum: lower ball goes UP to make it run SLOWER). However if the timing error proves to be beyond the scope of the reg. nut, then look for weight alterations. If the clock is GAINING, you have to DECRERASE the weight in te lower ball to slow it down. |

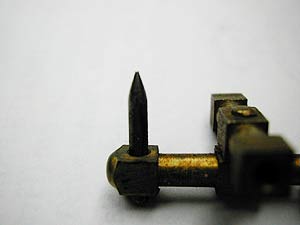

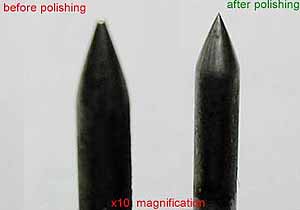

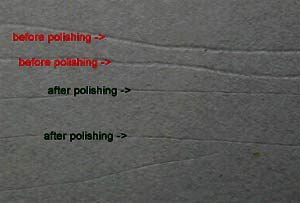

Repair tip: Polishing of the swinging arm pivots
